Types Of Sensor That Being Used For Experiment

       Before we are using MQ-4 for this project we run some experiment to some sensor to determine which sensor is more suitable for our project and for ours circuit

This is the first sensor that we used for the experiment which is MQ-137



This is the second sensor that we are using that is MQ-2

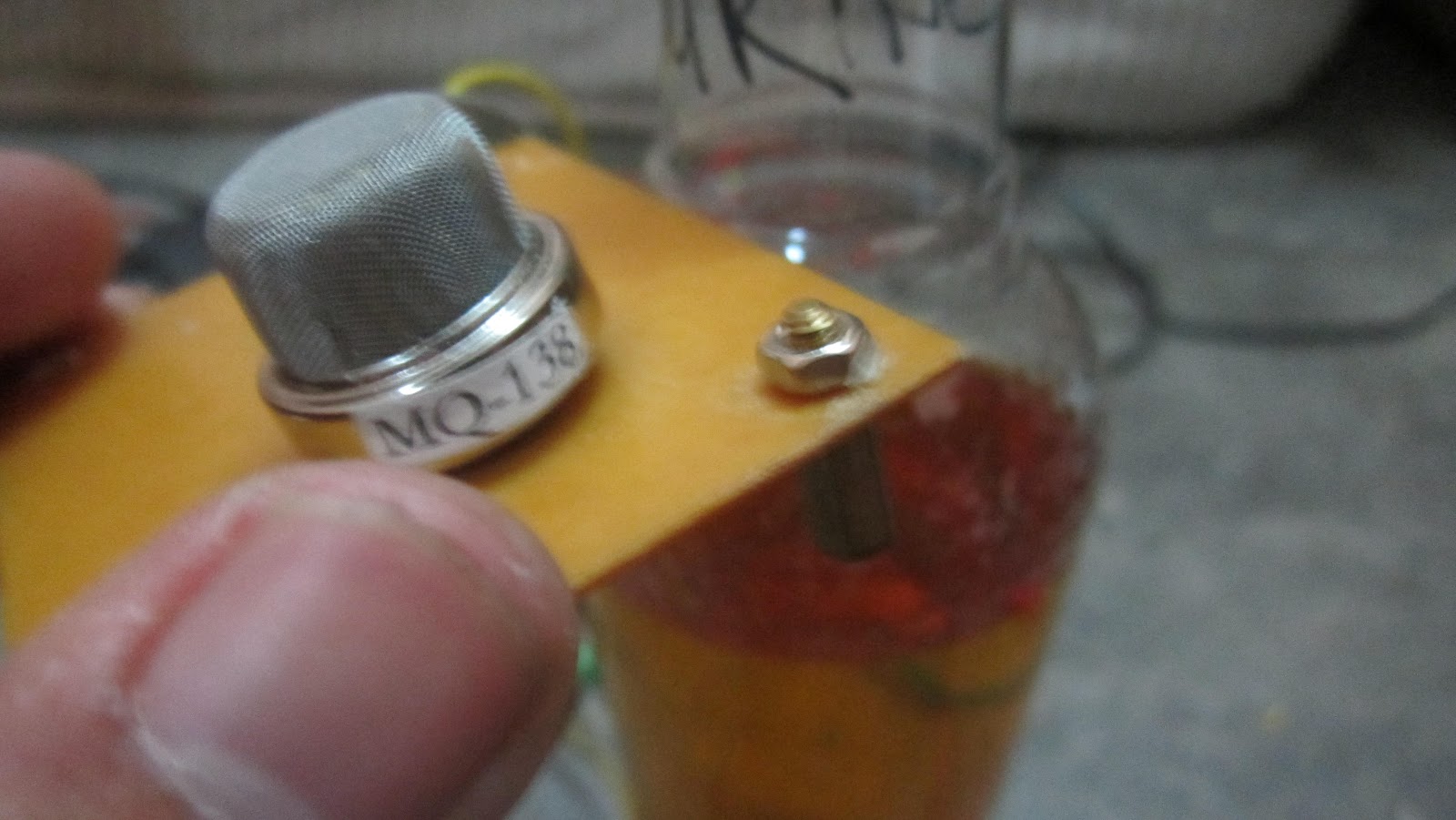

The third sensor that we used is MQ-138

The last sensor that we being use is MQ-4

After getting the result we decide to used MQ-4 for ours project.This is because the LPG Gas Sensor (MQ4), ideal sensor for use to detect the presence of a dangerous Liquefied petroleum gas (LPG) and it has high sensitivity to propane, butane, isobutene, natural gas. The sensor can also be used to detect combustible gases, especially methane. This sensor has a high sensitivity and fast response time.

Making A Simple PCB Board For The Sensor

Today we'll make a PCB for this circuit. The component the use is PCB maker pen, PCB board, etching liquid and thinner.

Im doing by my self to make a line on PCB board.This is to lower the cost to buy a new PCB board and learn how to make the PCB board without doing it at lab.

Make a MQ 4 Gas Sensor at PCB

Here the step :

1st : Clean the PCB board with soap using spongy scruber and leaveit until dry

2nd : Ligthly sketch the circuit diagram by using pencil for clear sketch before using maker pen

3rd : Then sketch by using maker pen or PCB maker

4th : Use any sharper things and then scale to remove extra lines

5th: Submerge PCB into etching solution



6th: After perfect etching, wash the PCB by using water

7th : Using thinner to remove maker lines on the PCB board

8th: Finally we will get the real line at PCB and ready to drill.!!!

The PCB board is ready to use.

Circuit Diagram For Wireless Gas Leakage Detector Alarm

Note : Red LED will flash a few seconds after the switch is on and the green LED goes on to indicate the sensor has active. Then try to detect the sensor using LPG or smoke etc. When the sensor would detected gases, the relay will act as a switching and transmit go through door bell alarm / alarm system.

Research on type of gases

  As being mentioned before the specified gas that can be detect by this project is LPG gas so i'm doing some research on the LPG gas. It is liquid petroleum gas or simply propane or butane, is a flammable mixture of hydrocarbon gases used as a fuel in heating appliances and vehicles. It is increasingly used as an aerosol propellant and a refrigerant, replacing chlorofluorocarbons in an effort to reduce damage to the ozone layer. When specifically used as a vehicle fuel it is often referred to as auto gas. Here are some product that use LPG gas:

  This gas is heavier than air, when it leaks from a cylinder it flows along floor and tends to settle in low spots such as a basement. This can cause fire or suffocation if not dealt with. Here is a circuit that detects the leakage of LPG gas and alerts the user through audio-visual indications.

          This LPG Gas Sensor (MQ4), ideal sensor for use to detect the presence of a dangerous Liquefied petroleum gas (LPG) and it has high sensitivity to propane, butane, isobutene, natural gas. The sensor can also be used to detect combustible gases, especially methane. This circuit can detect leakages in your Home, car or in a service station, storage tank environment. This unit can be easily implemented to industrial level by upgrading its ranges.

        This project is designed to detect the LPG from 200parts per million (PPM) to 10,000 PPM. Whenever there is LPG concentration of 1000 ppm (parts per million) in the area, the OUT pin of the sensor module goes high. This signal drives timer IC 555, which is wired as an astable multivibrator. The multi vibrator basically works as a tone generator. A buzzer is connected to produce audible alert signal.
